## 5.4 Chi-Square Test for Crosstab Data

In the previous section we computed crosstab tables, relating two categorical variables with each other. A natural question to ask now is:

Is there a relationship between two (categorical) variables, or do they appear to be independent?

The complete answer to this question would take us into the realm of hypothesis testing, which we have not yet introduced. For example, what exactly do we mean by "independent". But the question is intuitively easy to understand, so we will give a brief discussion on how to answer the above question without covering all of the mathematical details.

**Example**: Consider the crosstabs table we generated
before, relating income with sex for a particular company, using the
data file Selected
Employees. The table we generated (using the Pivot Table as
desribed previously) with raw numbers, not row or
column percentages, looked as follows:

*A natural and interesting question is: "Is there
a relationship between salary and sex (the row and column variables)
or do the two variables appear to be independent of each other".*

To answer this question we *assume* at first that the
row and column variables are independent, or unrelated. If that
assumption was true we would expect that the values in the cells of
the table are *balanced*.

**Actual versus Expected - the Theory**

To determine what we mean by *balanced*, let's take a simple
example with two variables, sex and smoking, for example. We are
interested in figuring out whether there is a relation between sex
(male/female) and smoking (yes/no), or whether the two variables are
independent of each other. We therefore conduct an experiment and
ask a randomly selected group of people for their sex and whether
they smoke. Then we construct the corresponding crosstabs table.
Let's say we get a tables as follows (the actual numbers are
fictitious):

MaleFemaleTotalsSmoking30 5 35Not smoking10 55 65Totals4060100

Of the 35 people that are smoking, 30 of them are male.
Conversely, of the 65 people that are not smoking, 55 of them are
female. Such an outcome - using common sense - would suggest that
there *is* a relation between smoking and sex, because the vast
majority of smokers is male, while the majority of non-smokers is
female.

On the other hand, we might have gotten a table like this (again with fictitious numbers):

MaleFemaleTotalsSmoking22 18 40Not smoking26 34 60Totals4852100

Now the smokers and non-smokers are divided pretty much evenly
among men and woman, suggesting perhaps that the two variables *
are *independent of each other (a person's sex does not seem to
have an impact on their smoking habit).

Now let's look exactly how a balanced table should look like if we assume that two variables are indeed independent. Suppose we are again conducting our experiment and select some random sample, but for now we only look at totals for each variable separately (the actual numbers are once again fictitious). Suppose, for example:

- number of smokers is 30, number of non-smokers is 70
- number of males is 40, number of females is 60
- total number of data values (subjects) is 100

With this information we could construct a crosstabs tables as follows:

MaleFemaleTotalsSmoking30Not smoking

70Totals4060100

But what kind of distribution in the various cells would we *
expect* if the two variables were independent?

- We know that 30 of 100 (30%) are smoking; there are 40 males and 60 females - if male and female had nothing to do with smoking (the variables were independent) that we would expect that 30% of the 40 males are smoking, while 30% of the 60 females were smoking.
- We also know that 70 of 100 (70%) are not smoking; there are 40 males and 60 females - if the two variables were independent, I would similarly expect that 70% of the 40 males were not smoking and 70% of the 60 females were not smoking

Under the assumption of independence I would *expect* my
table to look as follows:

Male

Female

TotalsSmoking30/100 * 40 = 12 30/100 * 60 = 18 30Not smoking70/100 * 40 = 28 70/100 * 60 = 42 70Totals4060100

In other words, if a crosstabs table with 2 rows and
2 columns has a row totals *r _{1}* and

*r*, respectively, and column totals

_{2}*c*and

_{1}*c*, then if the two variables were indeed independent we would expect the complete table to look as follows:

_{2}

XYTotalsAr _{1 * }c_{1}/ totalr _{1 * }c_{2}/ totalr _{1}Br _{2 * }c_{1}/ totalr _{2 * }c_{2}/ totalr _{2}Totalsc _{1}c _{2}total

But now we can create an effective procedure to test whether two variables are independent:

- Create a crosstabs table as
usual, called the
**actual**or**observed****values**(not percentages) - Create a
*second*crosstabs table where you leave the row and column totals, but replace the count in the i-th row and j-th column by:

(total of row i) * (total of column j) / (overall total)

Fill in all cells in this way and call
the resulting crosstabs table the **expected values table**,
because these numbers would be *expected* in this position of
the table if the two variables under investigation were indeed
independent. Now, here is the clue:

If the, the conclusion is that the variables canactualvalues arevery differentfrom theexpectedvaluesnotbe independent after all (because if theywereindependent the actual values should look similar to the expected values).

The only question left to answer is "exactly when is this diffence too large", i.e. at which point can I assume that the difference between expected and actual values is so large that I have to conclude that the variables can not be independent. Before we answer that question, let's return to our original example.

**Actual versus
Expected Values**

Recall that we wanted to determine whether sex (gender) and salary level are independent of each other based on the particular company studied. According to our theoretical discussion above, we create a second table with the same number of rows and columns (and labels) and name that table "Expected Values", while the original table will be named "Actual Values". We simply copy-and-paste the original table and erase the "inside cells" so we can recompute them (do not copy the very top line of the original table).

*
Note that the table with actual values must contain counts, not
percentages*

In the table of expected values, each entry is computed as the:

product of the row and column total for that cell, divided by the overall total

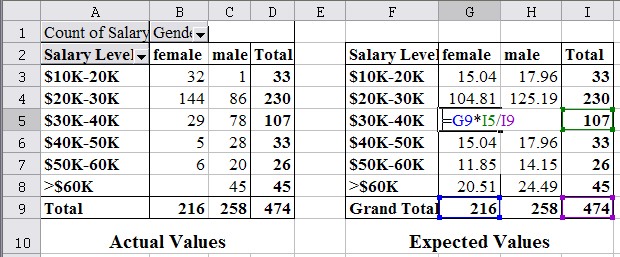

The next picture illustrates these computations:

For example, the entry
in cell G5 (column G, row 5) of the *Expected Values* table is the
product of the column G total (cell G9) times the row 5 total (cell
I5) divided by the overall total (cell I9). Similarly, the entries
of the other expected values are:

Value of cell G3 = G9 * I3 / I9 Value of cell H3 = H9 * I3 / I9 Value of cell G4 = G9 * I4 / I9 Value of cell H4 = H9 * I4 / I9 Value of cell G5 = G9 * I5 / I9 Value of cell H5 = H9 * I5 / I9 ... ...

If we compare the values, we see that of the people making $60K or more, fewer than expected are female (0 versus 20.51) while more than expected are male (45 versus 24.49). On the other hand, in the low-income category of $10-$20K, more than expected are female (32 versus 15.04) while fewer than expected are male (1 versus 17.96). That seems to point towards a gender bias for salaries, i.e. women make less money than men as a rule, or to phrase it differently:

the row and column variables doIn other words:notseem independent of each other; so that there seems to be a dependence between them

- if the sum of differences
^{(*) }between actual and expected values is "small", the assumption of independence is valid - If the sum of differences
^{(*) }between actual and expected values is "large", the assumption of independence is invalid, hence there must be a relation between the variables

The big question left
is: when is the difference small enough to accept the independence
assumption, and when is the difference so large that we can no
longer assume independence and must therefore accepted dependence.
The answer to this question is provided by the **Chi-Square test**.

*(*) We
don't really need the sum of differences, because then negatives and
positives would cancel each other out. Instead, we square all
differences before adding them up to eliminate possible negative
signs. Fortunately, though, Excel will handle the details of our
computation.*

**The Chi-Square Test**

The *Chi-Square test*
computes the sum of the differences between actual and expected
values (or to be precise the sum of the squares of the differences)
and assign a probability value p to that number depending on the size
of the difference and the number of rows and columns of the
crosstabs table.

**If**the probability**value**computed by the Chi-Square test*p***is**very**small**, differences between actual and expected values are judged to be significant (large) and therefore you conclude that the assumption of**independence is invalid**andbetween the variables. The error you commit by rejecting the independence assumption is given by this value of p.*there must be a relation*-
**If**the probability**value**computed by the Chi-Square test*p***is****large**, differences between actual and expected values are not significant (small) and you do not reject the assumption of independence, i.e. it is likely that theindeed*variables are**independent.*

To compute the value of
p, use the Excel function

=chisq.test(actual_range, expected_range)

**not**check this restriction - you need to manually inspect the expected values to ensure none of them have a value of less than 5.Let's call this the

**Rule of Thumb**test.

**What values of p are considered small enough:**

*We agreed to reject the default hypothesis and accept that there is a relation between the variables is p is "very small". Typically values of p less than 0.05 are considered small enough, but the closer p is to zero the more convincing the relationship is.*

Now we can finish the
above example: we used the *
Selected Employees
*data to generate the crosstabs table:

First we copy this
table of actual counts to a second table **(IMPORTANT: DO NOT COPY
THE TOP ROW OF THE TABLE) **to another table and compute the
expected values as outlined above:

Please not that all expected values are bigger than 5 (the smallest expected value is 15.04), so the Chi-Square test is applicable. Thus, in an empty cell, enter the Chi-Square test function:

=chisq.test(B3:C8, G3:H8)

In the above case Excel
computes that value to p = 1.91E-22, which is scientific notation
for 0.00000000000000000000191. Thus, p is most definitely small and
hence we conclude that there *is *a relation between the two
variables sex and salary. In other words, the salary level in this
particular company does depend on the sex of the employees. Since p
is so close to zero our error is close to zero as well, so we are
pretty certain that our conclusion is correct.

**Example: **
Using the data from
Selected Employees, is there a relation between salary and years
of schooling?

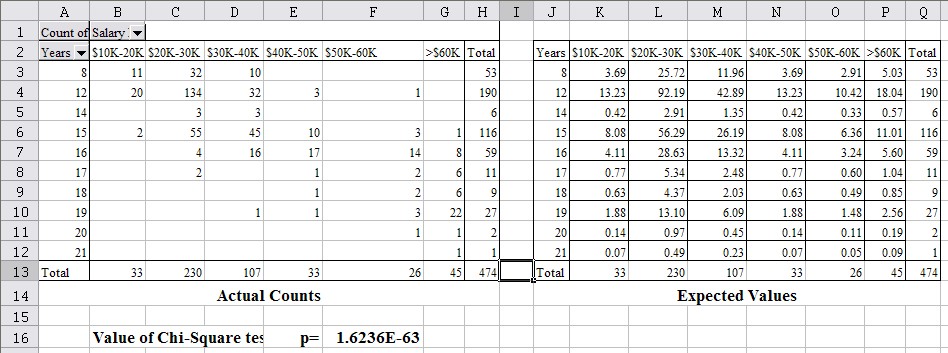

We first use the data and the Pivot Table tool to create a crosstabs table of salary versus years of schooling, as in the previous section:

Next we copy this table
(*without* copying the top row) and paste it below the actual
table. Then we compute the expected values, which is *a lot
*of work. Finally, we compute the Chi-Square test value p:

Again the value of p is
for all intent and purposes zero, so we can
with high certainty conclude that there *is* a relation between years
of education and salary level (in other words, based on this data you make more
money with more years of education, just
like your parents told you).

BUT we *failed to check* if
the expected values pass our "rule-of-thumb" test! In fact,
several of
the expected values are small, certainly smaller than
5. Thus, in this case the Chi-Square test is not reliable and we
should not believe its conclusions since the assumptions of the test
were not satisfied! To remedy the problem, you
could re-categoroze the data by using fewer groups so that hopefully
the expected values in the new tables will all be above 5

So, here is a final example.

**Example**:
Every year there are large-scale surveys, selecting a representative
sample of people in the US and asking them a broad range of
questions. One such survey is the
General Social Science
(GSS) survey from 1996 (which contains mostly categorical data).
Use the data (which is real-life data from 1996) to analyze if there
is a relation between party affiliation and people's opinion on
capital punishment.

After downloading and opening the GSS96-selected.xls data file, we construct a crosstabs table for "Party Affil" and "Capital Punishment" as described in previous sections, using the Pivot Table.

Then we copy the table (of actual values) to a second table and construct the expected values as described above (this time the table is pretty small, so computing the expected values is not that much work).

Finally, we use the chitest Excel function to compute the value of p. Here are the resulting figures:

This time the smallest expected
value is 9.02, which is above 5 so that it is valid to apply our
Chi-Square test. Again p is very close to zero, stating that there
*is* a relation between party affiliation and opinion on
capital punishment. In fact, if you compare the actual versus
expected values for the Democrats you can see that fewer democrats
than expected favor the death penalty, while more than expected
oppose it. For Republicans it is just the other way around. For
independent and people with other party affiliations there seems to
be little difference between actual and observed values.

So far in all our examples the
variables were dependent (probably). Of course that is not always
the case. For example, if we setup the corresponding tables for
actual and expected values for the data from the GSS96 survey
relating "Life is" with opinion on "Capital Punishment", we see that
the computed p value is p = 0.045, which means that if we did reject
the assumption of independence and hence stated that the outlook on
life and the opinion on capital punishment *are* related, we
would make an error of 4.5% - that might be more than we are willing
to accept (see figure below).

Finally, note that the Chi Square
Test for crosstabs tables, as described here, checks whether two
variables are independent of each other or not. If the test results
in our conclusion that two variables *are* related, then the
next question is: *how strong are they related.* There are
different statistical procedures that allow you to decide about the
*strength* of a relation ship, but for categorical data Excel
does not provide the necessary functions to quickly
perform these necessary computations.

To analyze the strength of a possible relation between two variables we will restrict ourselves to numerical variables and move on to the next chapter.
